MODULE SCANNING
We evaluate transmission-related modules, stored faults, communication status, and system information to establish the correct starting point.

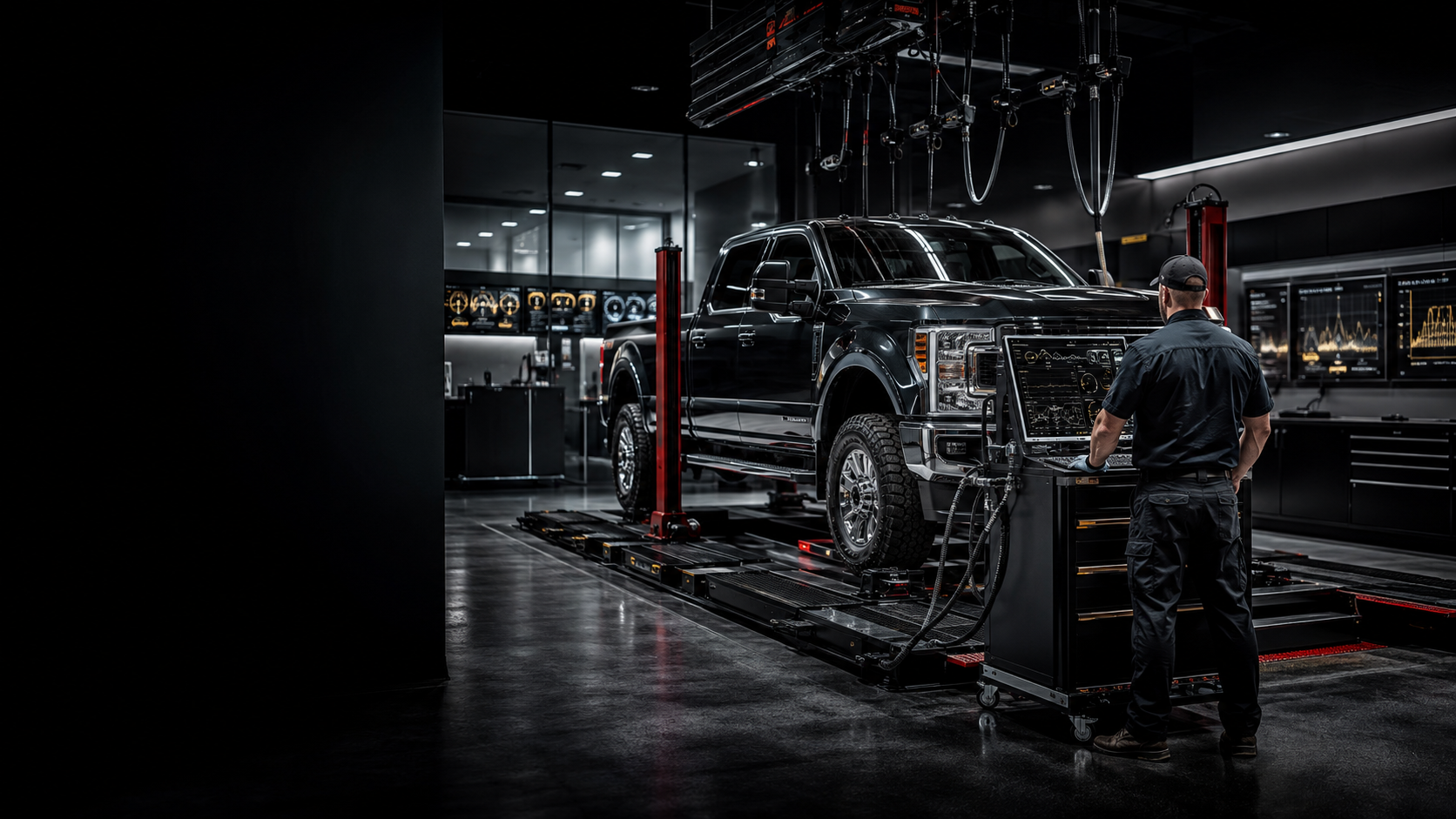

ADVANCED ELECTRONIC TRANSMISSION DIAGNOSTICS
THE WARNING LIGHT ISN’T THE PROBLEM. IT’S THE CLUE.
Modern transmission failures cannot be solved by guessing. Pitbull analyzes live data, electronic signals, module communication, operating pressure, and real vehicle behavior to identify the cause before you pay for the wrong repair.
SYSTEM ANALYSIS ACTIVE
01
MODULE SCANNING
02
LIVE DATA ANALYSIS
03
CIRCUIT TESTING
04
VERIFIED DIAGNOSIS
GUESSING GETS EXPENSIVE
DON’T REPLACE PARTS UNTIL YOU KNOW WHY THEY FAILED
A harsh shift, delayed engagement, warning light, limp mode, slipping condition, or communication fault does not automatically mean the entire transmission has failed.
The same symptom can be caused by wiring damage, voltage instability, sensor failure, solenoid performance, hydraulic pressure loss, module communication, calibration, or internal wear.
Replacing components without confirming the cause can cost thousands—and leave the original problem unresolved.
WE TEST THE SYSTEM
BEFORE WE RECOMMEND
THE SOLUTION.
BEFORE WE RECOMMEND
THE SOLUTION.
LIVE DATA
REAL ANSWERS
DATA BEFORE DECISIONS
DIAGNOSE THE CAUSE. NOT JUST THE CODE.

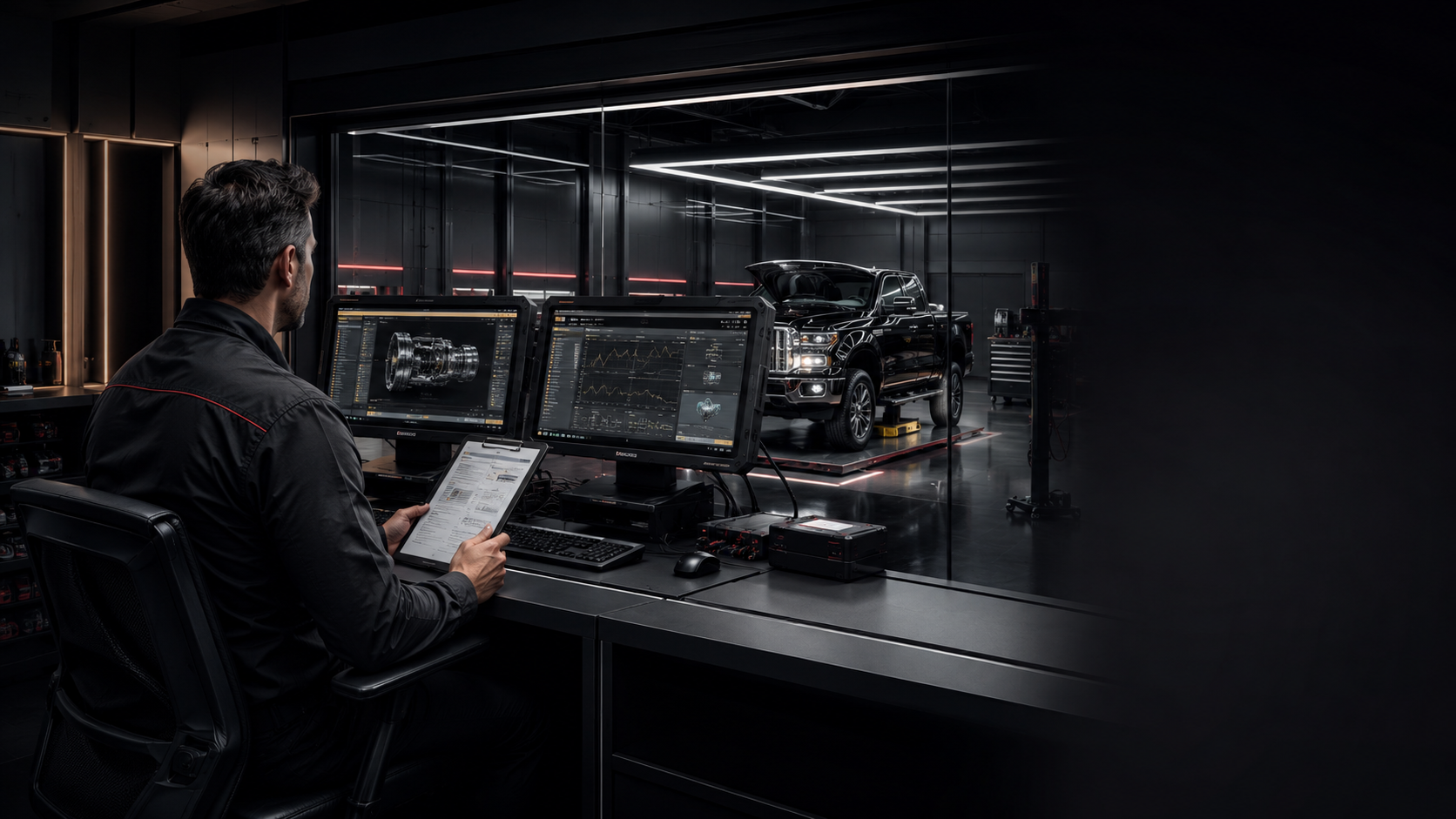

Our diagnostic process combines electronic testing, live vehicle data, physical inspection, and transmission experience to separate symptoms from the actual failure.

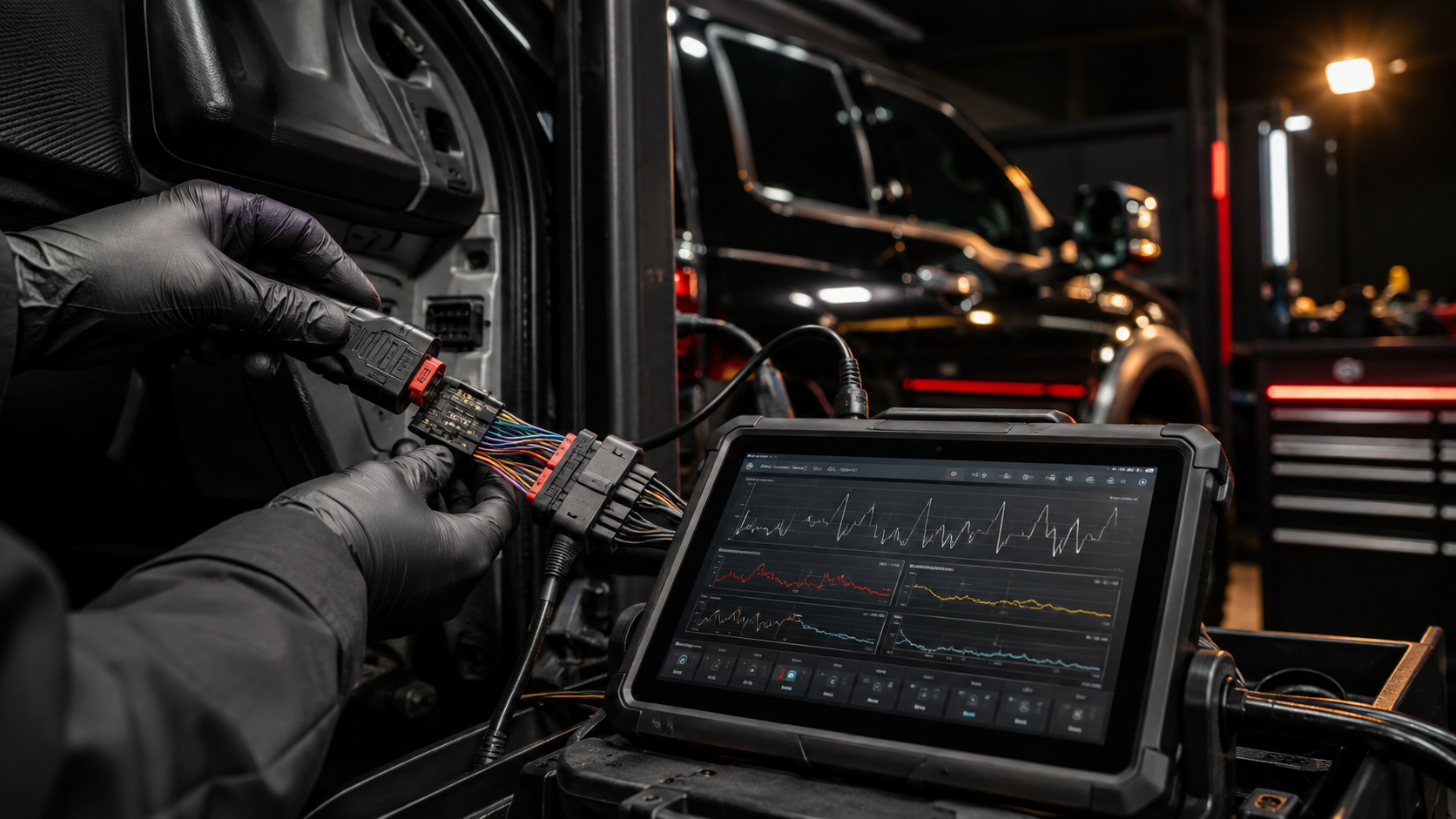

LIVE DATA ANALYSIS
Temperatures, commanded shifts, sensor signals, converter behavior, pressure information, and real-time response are analyzed together.
CIRCUIT TESTING
Wiring, connectors, power, ground, resistance, and signal integrity are tested when an electrical fault may be affecting transmission operation.

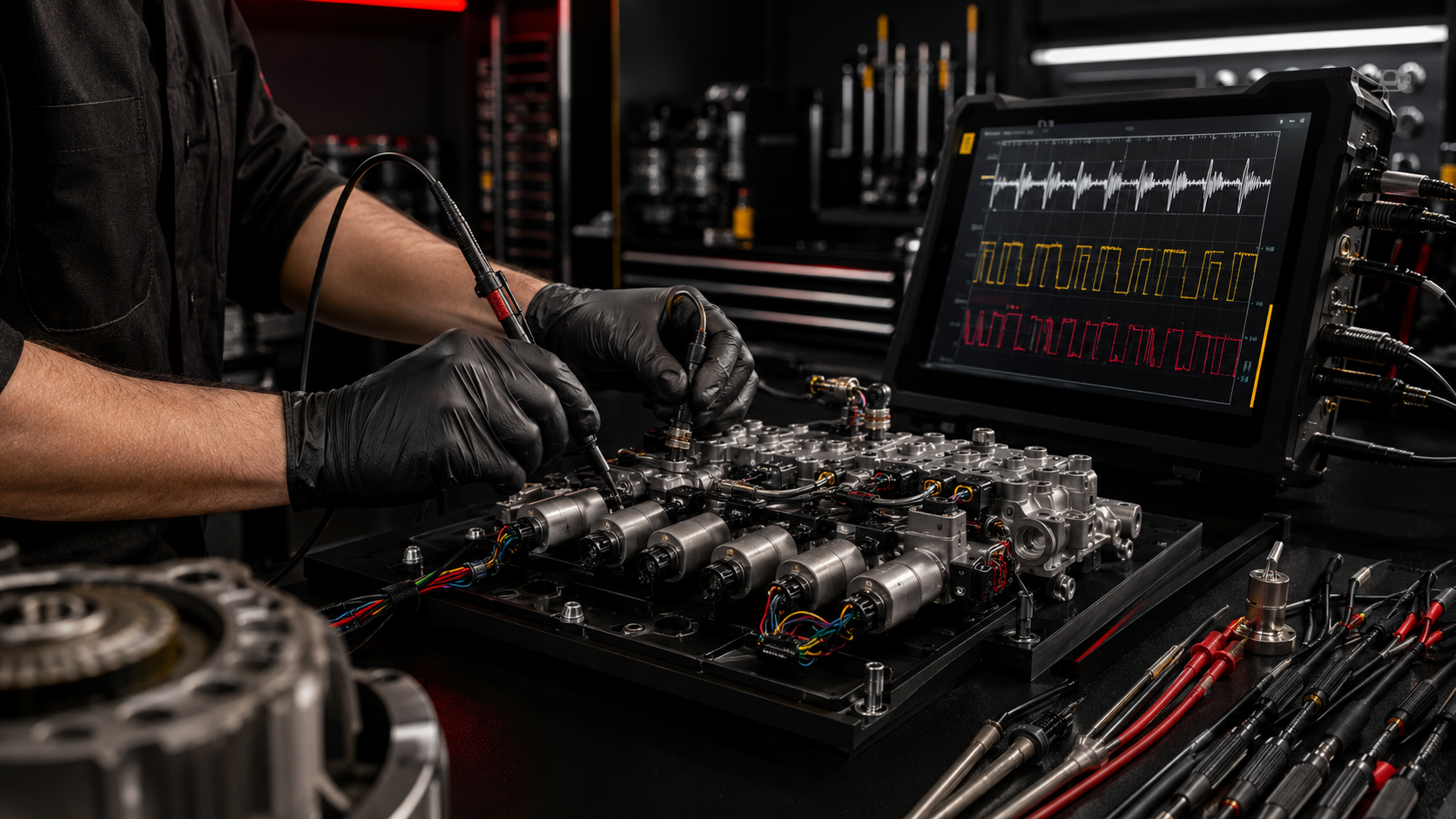

SOLENOID TESTING
Electronic commands and component responses are evaluated to determine whether the transmission is receiving and executing the correct instructions.
ROOT-CAUSE IDENTIFICATION
Electronic evidence is compared with the vehicle’s actual symptoms to identify the failure instead of simply reacting to a fault code.
CLEAR REPAIR DIRECTION
The results help determine whether your truck needs an electrical repair, programming, hydraulic correction, component replacement, or reconstruction.
MORE THAN A CODE READER
A CODE TELLS YOU WHERE TO LOOK. EXPERIENCE TELLS YOU WHAT TO TEST.
A diagnostic code is only one piece of evidence. It does not automatically identify the failed component, and it should never be treated as permission to begin replacing expensive parts.
Pitbull evaluates what the control module is commanding, what the sensors are reporting, and whether the mechanical system is responding correctly.
✓
Professional module scanning
✓
Live operating data
✓
Sensor and solenoid evaluation
✓
Power and ground verification
✓
Wiring and connector inspection
✓
Oscilloscope signal testing
FROM SYMPTOM TO VERIFIED CAUSE
FIVE STEPS. ONE CLEAR ANSWER.
Our process is designed to replace assumptions with evidence and give you a clear direction before unnecessary repairs begin.
LISTEN
We begin with what you are experiencing: slipping, harsh shifting, delayed engagement, warning lights, vibration, overheating, or loss of power.
CAPTURE
We collect fault history, operating data, temperatures, electronic commands, module information, and transmission response.
TEST
Relevant circuits, signals, components, connections, and operating conditions are tested to confirm or eliminate possible causes.
VERIFY
The electronic evidence is compared with the truck’s actual behavior so the failure can be confirmed before recommending repairs.
EXPLAIN
We explain what was found, why it is happening, and which repair direction makes sense for your truck.
PROTECT YOUR INVESTMENT
THE RIGHT DIAGNOSIS CAN SAVE YOU FROM THE WRONG REPAIR
Electronic diagnostics is not an additional expense—it is the step that helps prevent unnecessary spending.
By identifying the cause before replacing components, you gain a clearer repair plan, reduce the risk of repeated failure, and make a better decision for your truck, your time, and your business.
01
FEWER UNNECESSARY PARTS
02
CLEARER REPAIR DIRECTION
03
FASTER PROBLEM IDENTIFICATION
04
LOWER RISK OF REPEATED FAILURE
05
BETTER INVESTMENT PROTECTION
06
CONFIDENCE BEFORE REPAIR
STOP GUESSING
KNOW THE FAILURE BEFORE YOU PAY FOR THE FIX
Tell us what your truck is doing. Pitbull will evaluate the symptoms, analyze the system, and help determine the correct next step before unnecessary parts and labor begin adding up.
